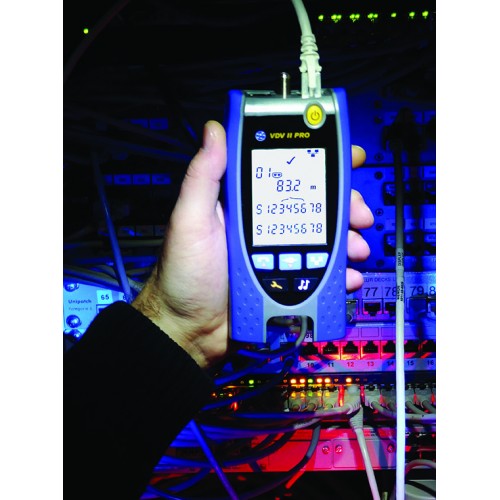

TREND Networks VDV II - Data Cable Verifier with AnyWARE Cloud
Copper Cable Testers / Verifiers That Make Wiremapping Easy

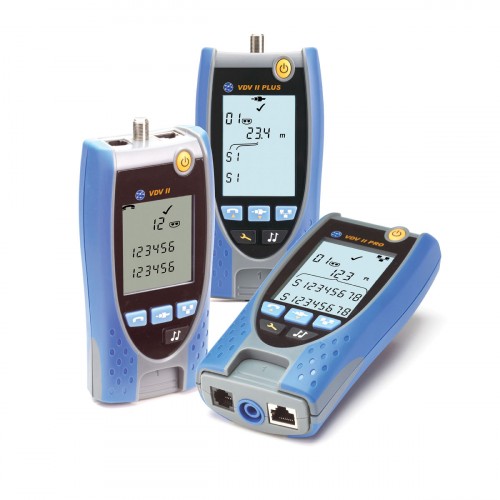

The VDV II Series are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.
Employing state-of-the-art technology, VDV II offers functionality not previously available in a wiremapper. The advanced wiremap engine accurately displays complex wiring faults instantaneously whilst TDR (Time Domain Reflectometry) aids troubleshooting and improves
VDV II cable testers / verifiers check the integrity of copper cables commonly found in voice, data or video installations, including telephone wiring, data networks and video/security cabling.
Measures cable length | Provides distance to fault (TDR) | Identifies wiring errors instantly |

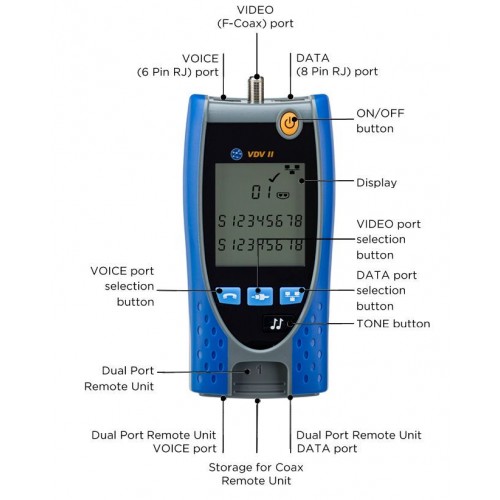

Determines services running: ISDN, PBX and PoE | RJ-11, RJ-12, RJ-45 and COAX ports |
 The flagship VDV II Pro cable verifier utilises TDR to accurately measure cable length and provide distance to fault information. TDR's work by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur. This speeds up fault finding as well as minimising disruption and potential damage to fixtures and fixings. | Speed  With comprehensive details on faults such as opens, shorts, crossovers and split pairs, the VDV II cable verifier identifies wiring errors instantly. The integrated RJ-11/RJ-12 (voice), RJ-45 (data) and coax F-Type (video) connectors allow faster testing of most types of low-voltage cables by eliminating the need for separate testers or adapters. |
Intelligence Connection issues are not always associated with cable faults, so VDV II Pro has the capability to help identify service related issues. By detecting the presence of voltage and checking polarity, VDV II Pro quickly determines which media service is running over the cable, such as ISDN, PBX and PoE (Power over Ethernet) resulting in faster fault diagnosis. Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information. Furthermore, to prevent potentially costly damage to the tester all VDV II's are smart enough to know when they have been plugged into an outlet where voltage is present. | Voice  Support for 1, 2 or 3-pair RJ11/12 telephone testing cable.Data  Support for 1, 2 or 3-pair RJ11/12 telephone testing cable.Video  Tests coax cable through F-connector interface. |
TREND AnyWARE Cloud
The new TREND AnyWARE Cloud management system allows real time collaboration between Project Managers and Field Technicians. There is no need for Field Technicians to setup the LanTEK IV / IV-S, Project Managers pre-configure the jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes and compressing the time taken to prepare reports for customers and warranties.
Operates anywhere with a web browser TREND AnyWARE Cloud operates on a PC, Mac and tablet devices (Android and iOS) | Easy to find project files Attach all project files including cable layout drawings, videos, and photos into the TREND AnyWARE Cloud. Everything you need in one place. |
Share reports easier Use TREND AnyWARE Cloud to share links to the test reports eliminating the need to manually email large attachments. | Reduce training time with WalkMe TREND AnyWARE Cloud is embedded with the WalkMe digital adoption platform providing proactive, step-by-step guidance on all key tasks. |
Team Viewer Live Support Using the TREND AnyWARE Cloud users can connect to a LanTEK IV / IV-S remotely to troubleshoot failed links, minimising troubleshooting time, increasing collaboration and reducing call-backs. | Easily manage the certifier fleet Fleet manager allows you to see who has the certifier, when the software was last updated, calibration due date and when the results were last synced. Allowing you to manage tester downtime and ensuring results are transferred back to the office and not lost or deleted. |
Reduce training time The TREND AnyWARE Cloud comes with proactive, step-by-step guidance for all the key features. | Free storage No need for separate servers or backup systems. |

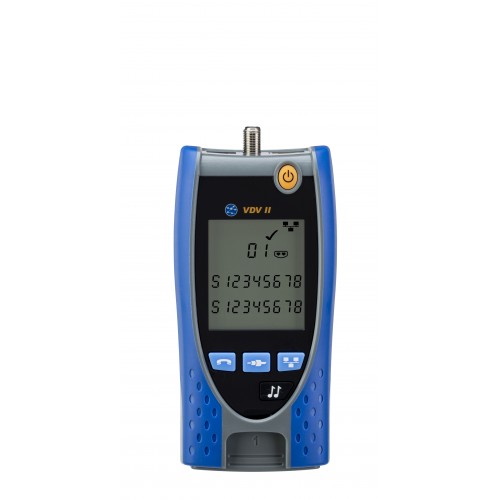

VDV II Basic
Performs standard tests for copper cabling, including: Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing, Wiremap for Miswires, Split Pairs, Shorts and Opens, Analog Tone Generator, Voltage Protection, Shielded Cable Testing and Single Screen Results

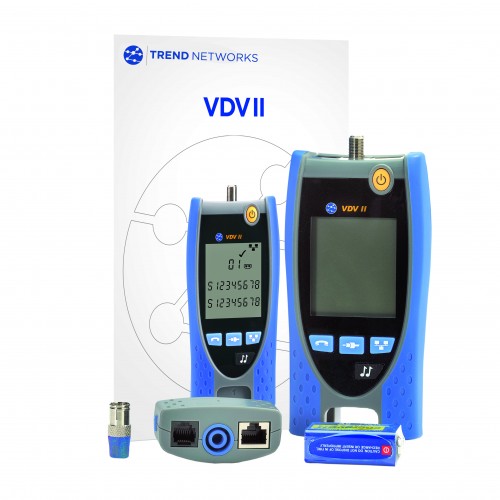

VDV II Basic Contents
Includes: 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide

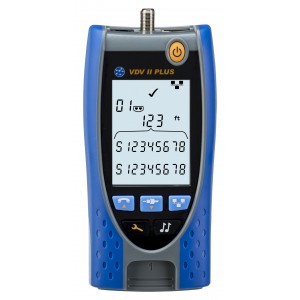

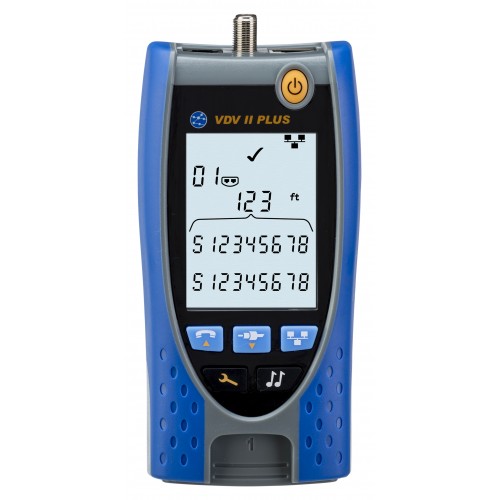

VDV II Plus
Performs standard tests for copper cabling, including: Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing, Wiremap for Miswires, Split Pairs, Shorts and Opens, Analog Tone Generator, Voltage Protection, Shielded Cable Testing, Single Screen Results, Larger 2.9" Display, Backlight, Hub Blink, Cable Length, Distance to Open and Carry Case & Cables

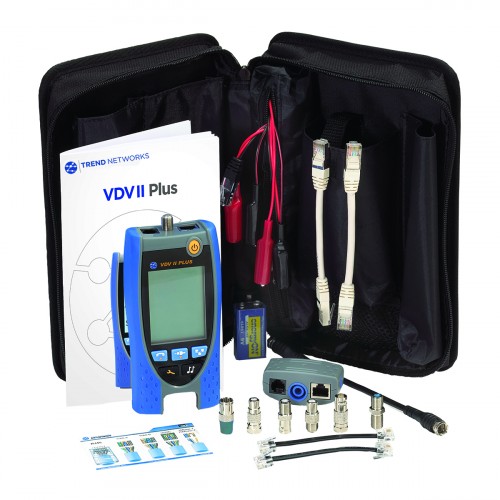

VDV II Plus Contents
Includes: 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ11/12 to RJ11/12 cable 100mm, 1 x F-type plug to F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F-type female adaptor, 1 x RCA female to F-type male adaptor, 1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.

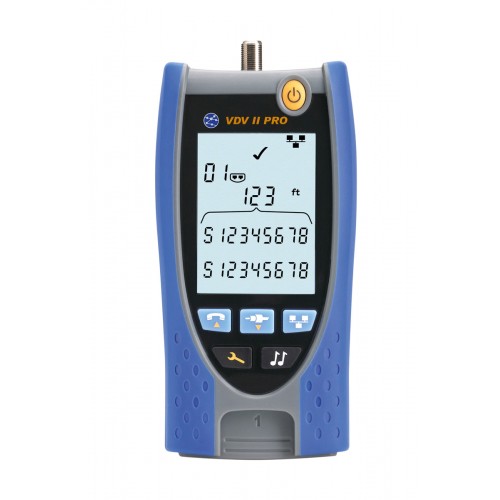

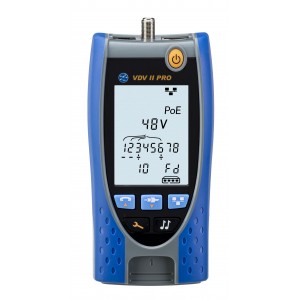

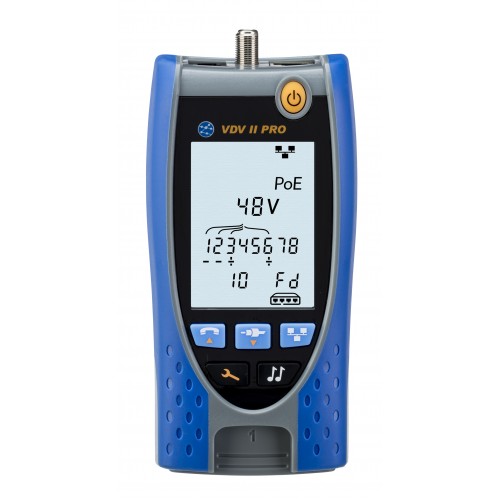

VDV II Pro
Performs standard tests for copper cabling, including: Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing, Wiremap for Miswires, Split Pairs, Shorts and Opens, Analog Tone Generator, Voltage Protection, Shielded Cable Testing, Single Screen Results, Larger 2.9" Display, Backlight, Hub Blink, Cable Length, Distance to Open, Carry Case & Cables, Distance to Open / Short (TDR), PoE Detection with Voltage Information, Media Service Detection, Ethernet Detection with Network Rate and Duplex Information

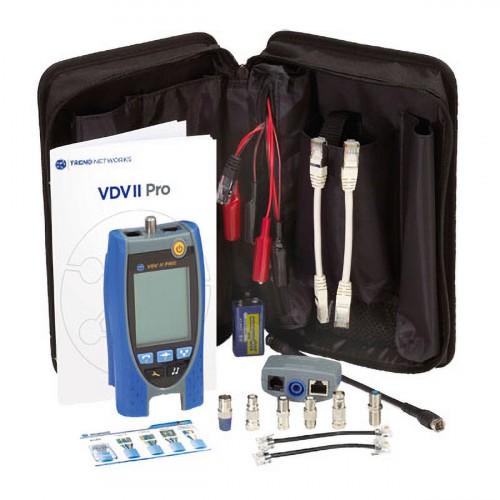

VDV II Pro Contents
Includes: 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ12 to RJ12 cable 100mm, 1 x F-type plug to F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F-type female adaptor, 1 x RCA female to F-type male adaptor, 1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.
Trend Networks VDV11 Voice Data & Video Cable Verifier
-
£65.00
£0.00
-
£78.00 (Incl VAT)
