Hellerman Tyton approved Category 6 cables are suitable for campus, riser and horizontal Installation. They are also compatible with all known connection systems according to EN50173 (2000). UTP and FTP versions available. Technical Description ISO/IEC 11801 - 2nd Edition EN 50173; PrEN 50288-3-1 EIA/TIA 568A-5 TSB 95 Fire Propagation Test : UL 1581 VW1 and IEC 332.1 Conductor Bare Cu Wire Insulator Material PE Number of Twisted Pairs 4  Sheath Material PVC or OHLS Outside Diameter of Conductor 0.575 mm Outside Diameter of Insulation 1.00 mm Outside Diameter of Sheath 5.80 mm Weight PVC (OHLS) 39.1 (41.2) kg/km Sheath Colour PVC Grey, LSOH Violet Batch No. and Metre marking. NVP rating 66% Temp. Range Installed 0 to 50°C Operating Temp. Range -20 to 60°

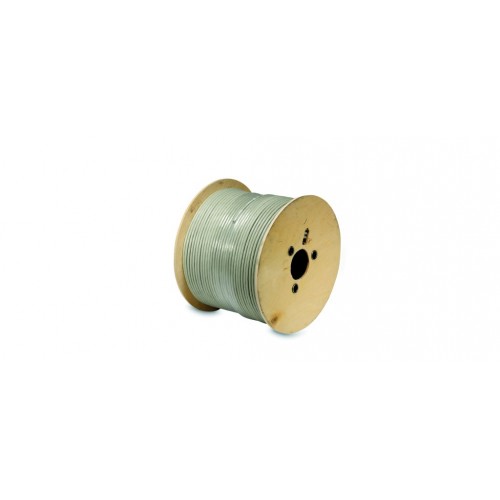

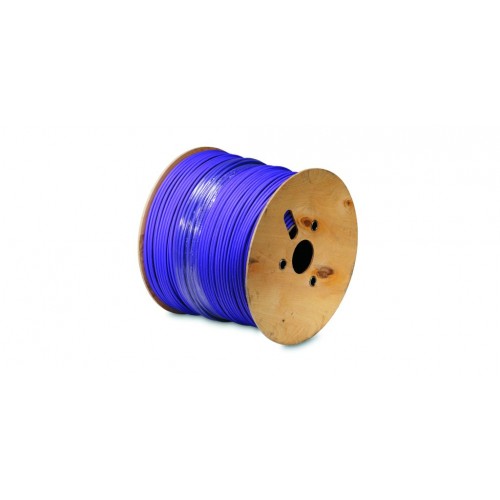

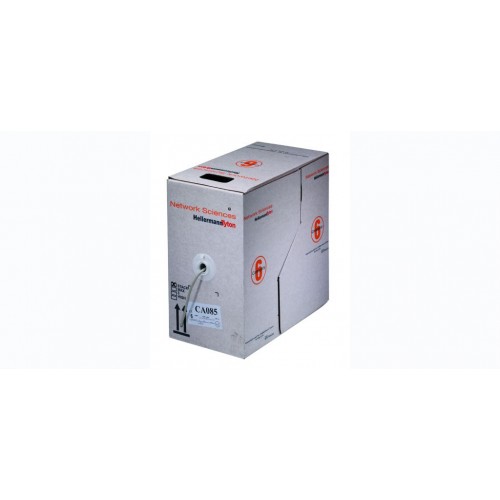

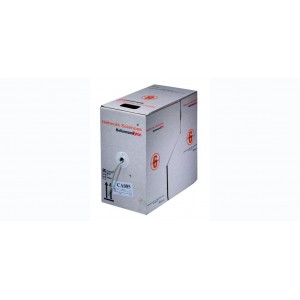

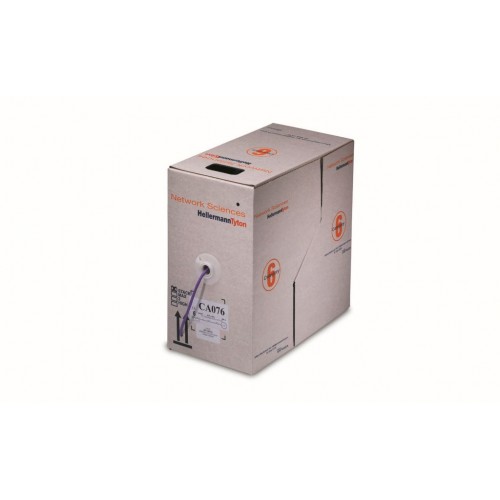

Hellerman Tyton Warranty Approved Cat6 Solid Cable

  • £103.00


  • £0.00
  • £123.60 £0.00 (Incl VAT)

Available Options

Approved Suppliers
