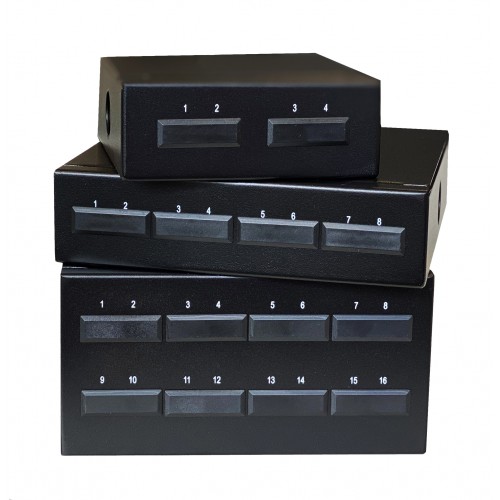

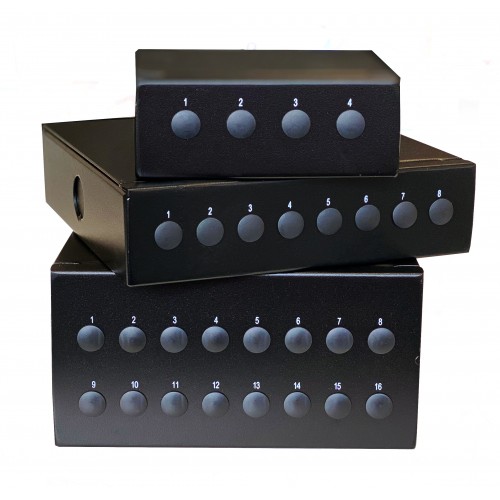

Small fibre termination box ideal for areas where it is not suitable to terminate into a 19” rack mounted panel.

They can be mounted under desks, floors or anywhere that space is at a premium.

Fixing would be by screws through pre drilled holes in the base or alternatively Velcro tape could be used.

Adapters are mounted on the front to suit customer requirement and the other three sides have a 20mm cable entry knockout that will accept a standard PG13.5 gland.

 The lid requires one screw to fix in place making installation very quick and easy.

Adapter ports are numbered with plenty of space below for labels to be applied. Any unused adapter ports will be blanked out.

There are three sizes available with the largest box capable of holding 32 fibres using LC Quad adapters.

Each box is supplied with 4 x kurly lok fibre management and 1 x PG13.5 cable gland.

Manufactured with 1.2mm mild steel.

Up to 8 fibres Dimensions  – 110mm x 110mm x 40mm

Up to 16 fibres Dimensions  – 160mm x 160mm x 40mm

Up to 32 fibres Dimensions – 160mm x 160mm x 80mm
